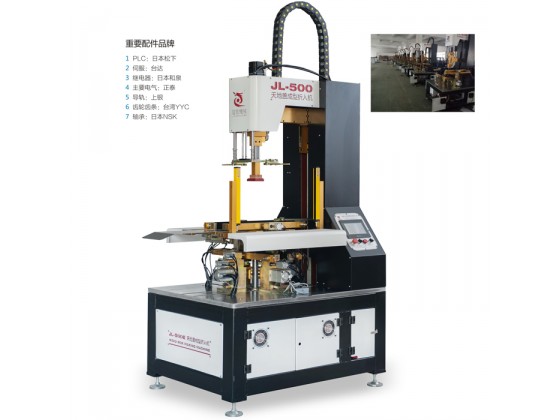

JL-500E天地盖成型折入机(五代)
JL-500E 天地盖伺服成型机(五代机)
效率高、换模快、参数记忆
Rigid box making machine
独家:日本进口控制系统,分模伺服台达加大750W,速度更快,包的更实,无气泡无划痕,可做加棉的软底
我们的优势:尺寸范围大、纸盒带定位扶正特别针对大盒子、300套数据记忆、手机盒侧耳对接对搭、深折到底
以下为JL-500D型 天地盖成型折入机 (四代机)
一、产品简介: Product brief introduction
该机是针对天地盖纸盒(如鞋盒、手机盒、礼品盒、手工盒等)的半自动辅助成型设备,通过人工在流水线上将内盒和面纸定位,再将定位好的纸盒套入机器模具上,机器自动吸住纸盒,自动糊盒、折边、压泡,一次性完成整个糊盒工艺。使产品标准化生产,大大提高了产品的质量。本机是礼品盒、手机盒、鞋盒、内衣盒等天地盖型盒子生产的最佳选择。
This machine is a semi-automatic equipment for making the up-bottom cover box (such as shoes box, phone box, gift box, hand work box, etc.) shape up. First worker locate the inner box and surface paper, and set the located box into the mold, then this machine catch up the box for pasting, folding and remove bubbles. Standardizing production improves the quality of the product greatly and it can produce the hardcover box of 15 to 20 per minute improving the production efficiency. This machine is the best choice for producing the up-bottom cover boxes.
二、产品特性/Advantages and characteristics
1、国内领先70mm包到底再折弯,最大制盒尺寸500x450x120mm。
2、制盒效率高,每小时产出900-1200个盒子,节省大量人工,投资回报率高。
3、率先采用双伺服马达,滚珠丝杆传动,定位精度0.1mm以内,自动包盒更精准。
4、性能稳定:采用日本三菱PLC电路控制,台湾威纶触摸屏,电器元件均采用国际高端品牌,机械配件精密加工,零部件电镀处理,机架喷涂烤漆工艺,不掉漆。
5、双线性导轨:保证垂直运动的高速度与位置精度。
6、快速换模装置:优化装模过程,调模简单易学,普通工人只需简单培训即可上岗。
7、配安全开关:安全快速断气阀以及暂停待机模式、全方位多重保护,使用更安全。
8、模具处设有真空吸风装置,防止纸盒脱落;
9. 拥有故障显示、故障停机功能,调试模式等,方便用户更好体验。
三、显著特点/Advantages and characteristics
1、双伺服马达传动,告别气动不稳定的传动方式;
2、多种制盒模式,触摸屏一键选择即可;
3、灰板带定位扶正功能,针对薄灰板、瓦楞板、大尺寸高盒子特别研制;
4、调模参数拥有记忆功能,一键保存,调机程序简化。
5、采用免换模具+万用模具固定块,装模简化。
7、零配件镀硬铬处理,光亮如镜。机架采用汽车喷涂烤漆工艺,永不掉漆;
6、整机钢板全部加厚,台面与机架使用30MM厚钢板,整机近两吨,结构更稳定、动作平稳。
1. Programmable control PLC, touch screen interface visualization controlling, parameter adjusting easily and mold changing simply.
2. Few rejects, efficient production, substantial saving in labor.
3. Vacuum suction to prevent cartons fall off.
4. Fault display and fault shutdown function, easy to adjust.
5. Safety protection devices avoid the accidents.
6. All the control fitting is from international high-end brands, with low failure rate and high precision.
四、技术参数/Technical Parameters
型号 Model |
JL-500E型 |
适用范围 Scope of application |
天地盖、首饰盒、手机盒、鞋盒等 |
最小制盒尺寸 Effective size(min) |
45x45x10mm |
最大制盒尺寸 Effective size(max) |
500x480x120mm |
生产效率 Work Speed |
12-20pcs/min |
电源 Power |
2.2Kw /220V |
重量 Net Weight |
1650Kg |
外形尺寸 Dimension |
1100x1100x2870mm |
