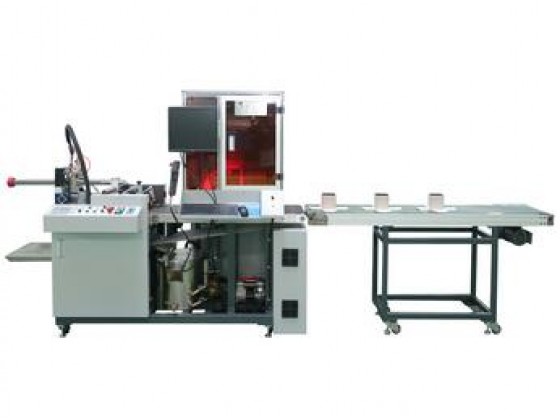

JL-420A天地盖自动定位机(视觉影像定位)
JL-400A天地盖自动定位机(视觉影像定位)

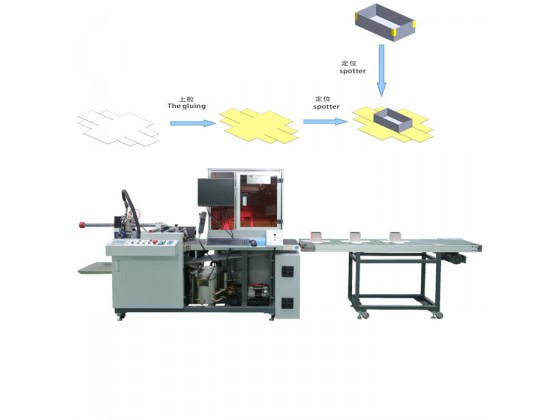

一、简介Introduction:
模块化设计,摄像头拍照配合机械手臂,快速完成单个定位,可选配自动贴角机、机械手抱盒成型机。
二、产品特性Features:

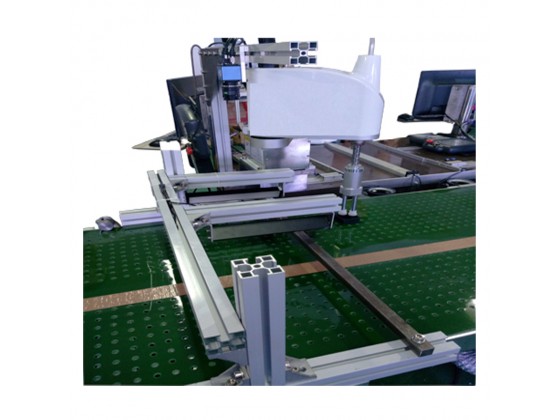

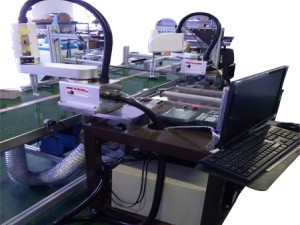

1、精度高,采用高清工业摄像头,配合机械手臂完成定位,定位精度±0.1mm。
2、电脑鼠标操作换款,易学,快速转版。
1.Adopts visual positioning system(with robot arm), high positioning accuracy(±0.1mm).
2.Simple structure and easy to operate
3.Adopts new designed paper feeding system which makes the feeding more stable
4.Equipped with plate-push mechanism can locate the leather case.
5.Can be infinitely extended to do a variety of special-shaped box
三、技术参数Specification:
最大功率Max power | 4KW | |
面纸厚度 Paper thickness | 80-300g/m2 | |
纸板厚度Car board thickness | 1-3mm | |
定位精度Precision | ±0.1mm | |
生产速度Speed | ≤35pcs/min | |
用胶种类Type of glue | 热熔胶+白胶 | |
胶桶容量Type of glue | 50KG | |
成品尺寸 Finished box size(L*W*H) |
L min | 100mm |
L max | 300mm | |
W min | 60mm | |
W max | 250mm | |
H min | 10mm | |
H max | 120mm | |
面纸尺寸Paper size(A*B) |
A min | 100mm |
A max | 400mm | |
B min | 150mm | |
B max | 800mm |
