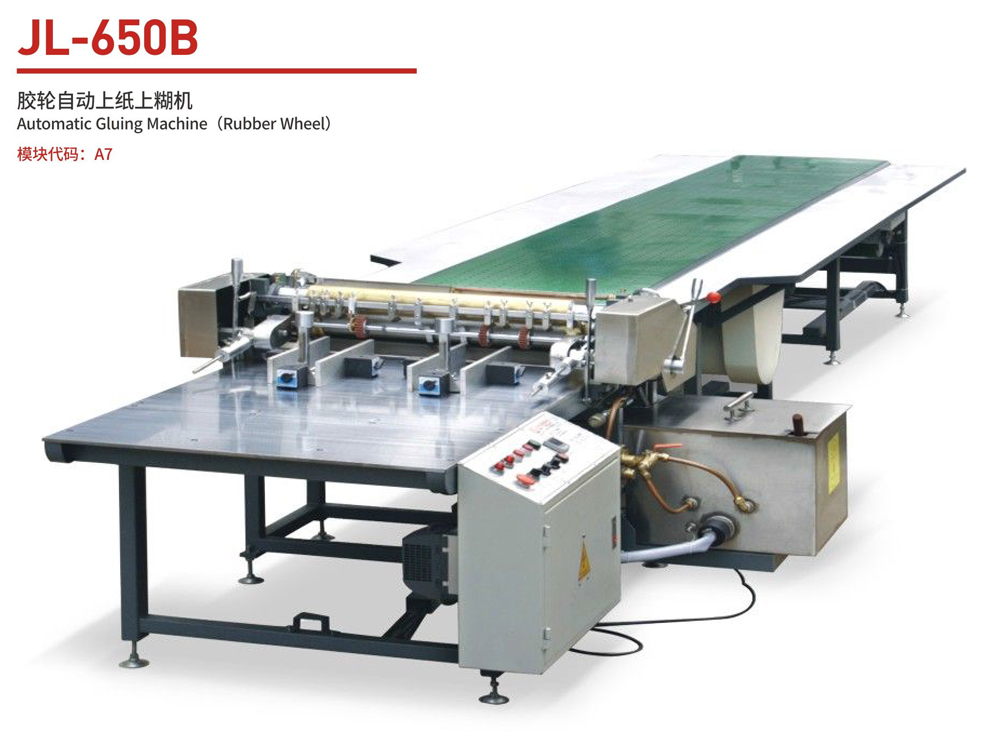

JL-650B 胶轮上纸上糊机
JL-650B 胶轮上纸上糊机
Automatic gluing machine feeder machine（rubber wheel feed）
一、产品简介/Product brief introduction
自动上纸上胶，自动温度调控，24小时定时器。生产线吸风装置避免面纸变弯，起泡，采用飞达吸纸送料，动物胶、热溶胶粉、白乳胶三种胶水皆可使用，循环使用节约成本，速度可调。两边可同时送纸，简单实用。
This machine can feed paper and glue and control temperature automatically and has a 24-hour timer. The induced draft on the production line can avoid cover paper curl and bubble. The paper is carried by feeder and animal glue, hot melt adhesive powder and white latex can be used. It can feed paper at both sides simultaneously. Simple and practical.
三、技术参数/Technical Parameters
|
型号 TYPE |
JL-650B |
JL-750B |
JL-850B |
|
纸张宽度 Case size |
W80-600mm |
W80-700mm |
W80-800mm |
|
纸张厚度Sheet thickness |
80-200g |
80-200g |
80-200g |
|
纸板厚度Cardboard thickness |
1-4mm |
1-4mm |
1-4mm |
|
上胶速度Production speed |
7-40units/minute |
7-40units/minute |
7-40units/minute |
|
功率Heater required |
3HP/380V |
3HP/380V |
3HP/380V |
|
电热功率Electric power |
4KW |
4kw |
4KW |
|
机械尺寸Machine dimension |
1650×1100×6350 |
1650×1200×6350 |
1650×1300×6350 |
|
机械重量Machine weight |
约850kg |
约1050kg |
约1250kg |
