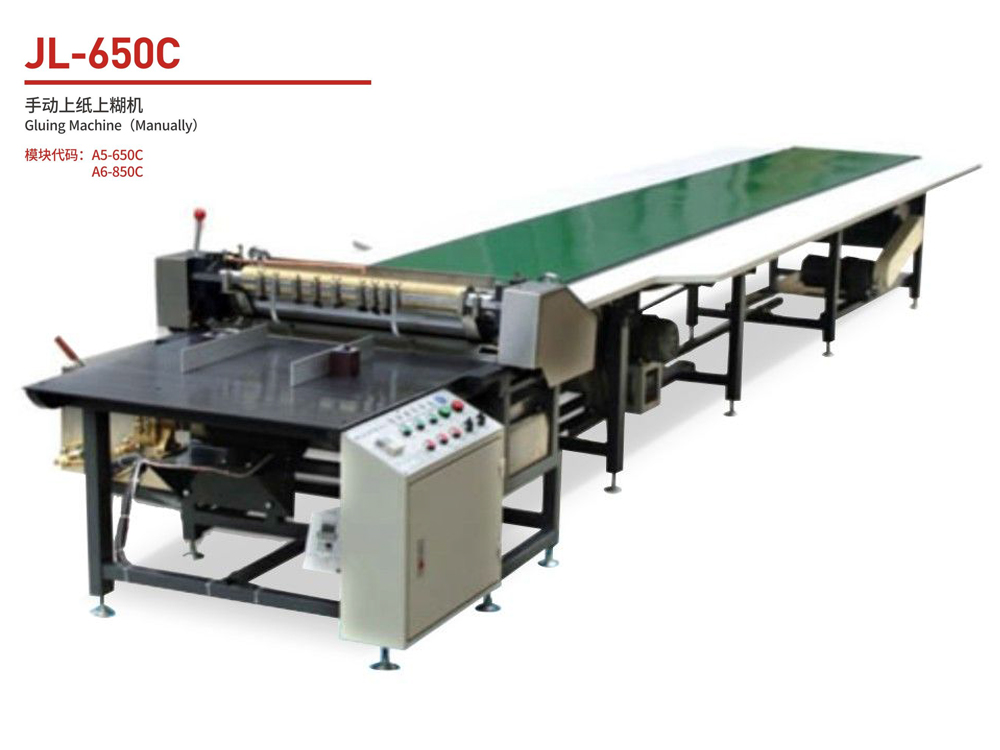

JL-650C 手动上纸上糊机
JL-650C 手动上纸上糊机
Semi-automatic gluing machine （manually）
一、产品简介/Product brief introduction
手动上纸，自动上胶，自动温度调控。生产线吸风装置避免面纸变弯，起泡，动物胶、热溶胶粉、白乳胶三种胶水皆可使用，循环使用节约成本，速度可调。两边可同时送纸，简单实用。
This machine can feed paper and glue and control temperature automatically and has a 24-hour timer. The induced draft on the production line can avoid cover paper curl and bubble. The paper is carried by feeder and animal glue, hot melt adhesive powder and white latex can be used. It can feed paper at both sides simultaneously. Simple and practical.
三、技术参数/Technical Parameters
型号TYPE
JL-650C
JL-750C
JL-850C
纸张宽度Case size
W80-600mm
W80-700mm
W80-800mm
纸张厚度Sheet thickness
80-250g
80-200g
80-250g
纸板厚度Cardboard thickness
1-4mm
1-4mm
1-4mm
上胶速度Production speed
7-40units/minute
7-40units/minute
7-40units/minute
功率Heater required
3HP/380V
3HP/380V
3HP/380V
电热功率Electric power
4KW
4kw
4kw
机械尺寸Machine dimension
1650×1100×6000
1650×1200×6000
1650×1300×6000
机械重量Machine weight
约800kg
约1000g
约1200kg
