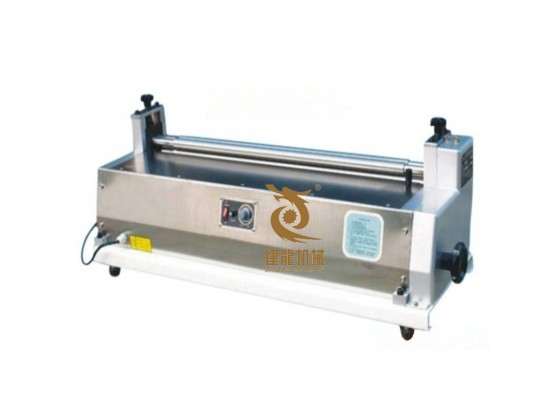

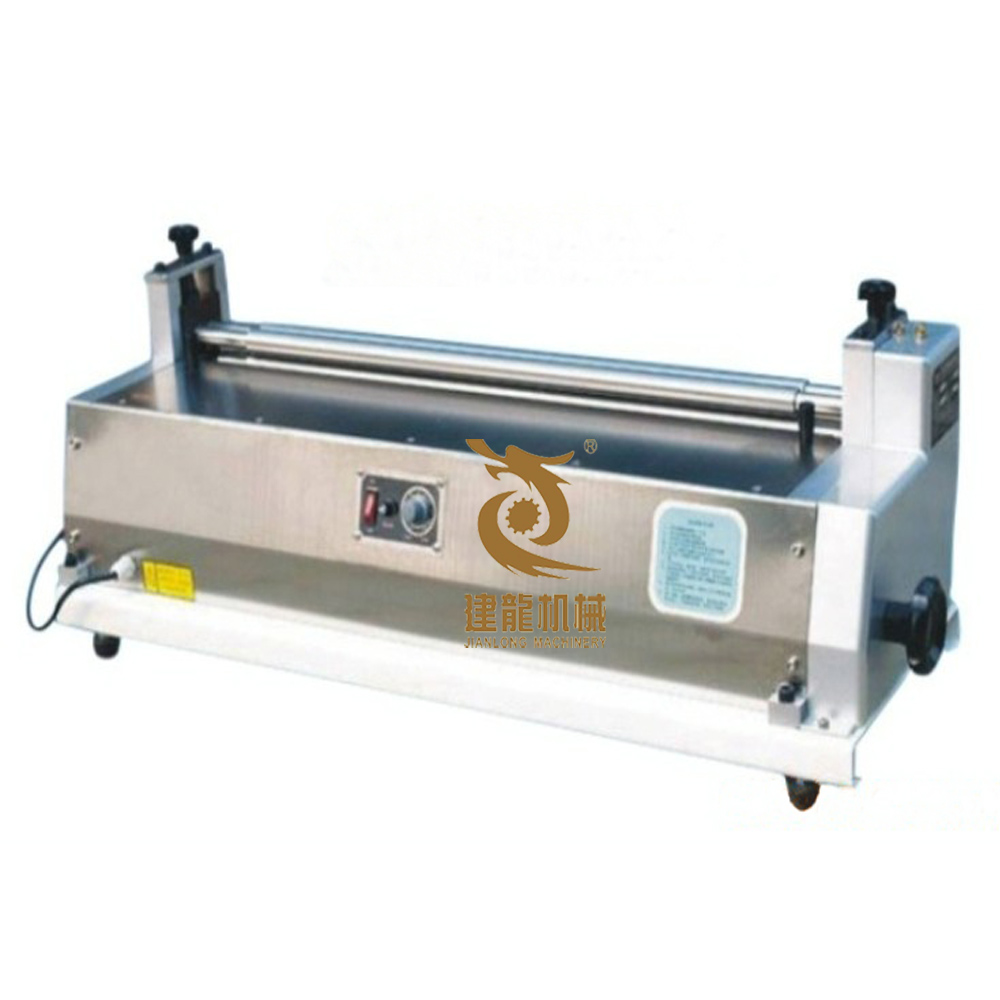

JL-22 白胶过胶机

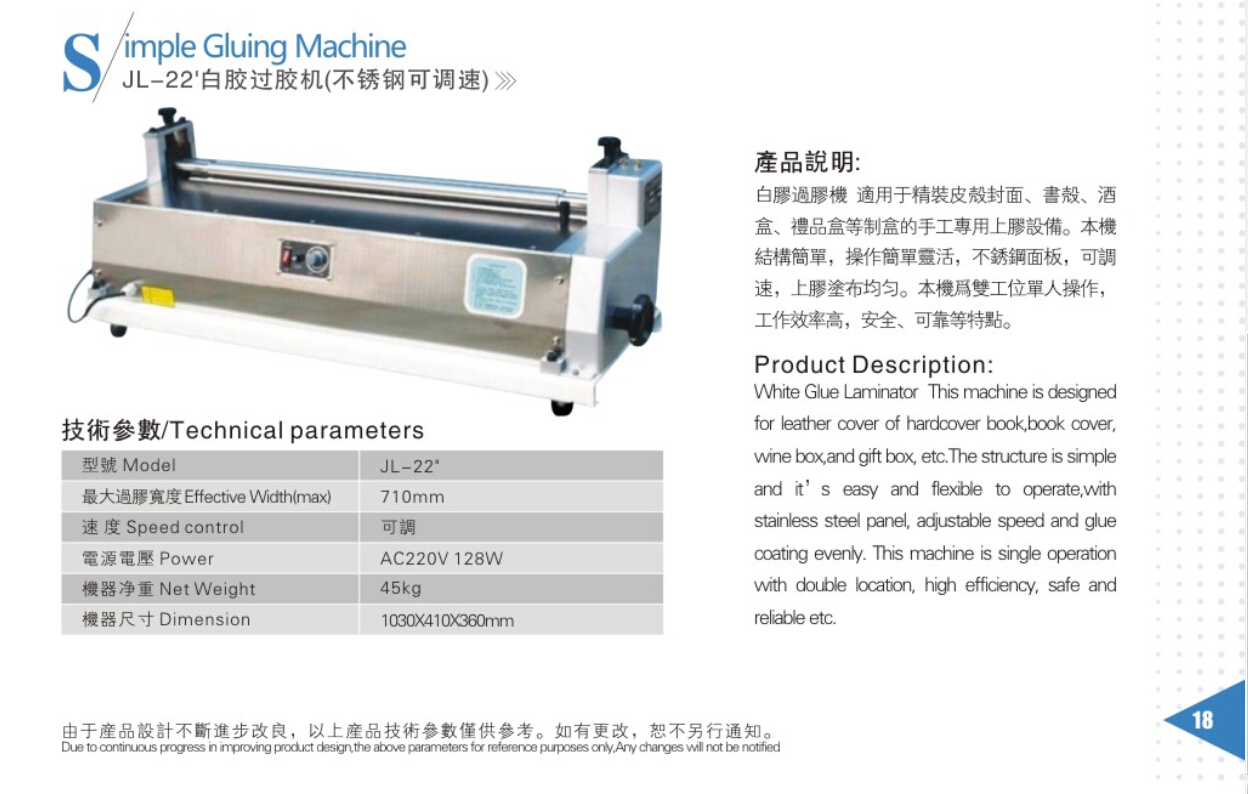

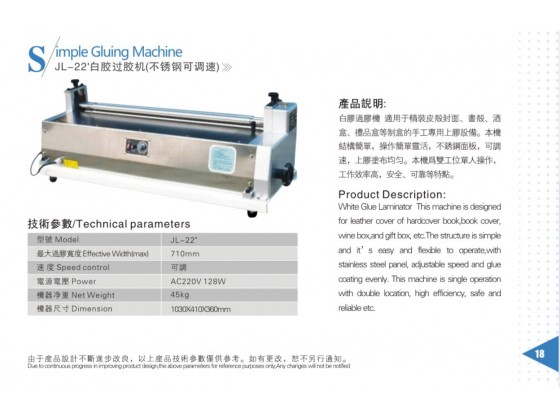

JL-22’ 白胶过胶机(不锈钢可调速)
Simple Gluing Machine(White Glue)
一、产品简介/Product brief introduction
白胶过胶机 适用于精装皮壳封面、书壳、酒盒、礼品盒等制盒的手工专用上胶设备。本机结构简单,操作简单灵活,不锈钢面板,可调速,上胶涂布均匀。本机为双工位单人操作,工作效率高,安全、可靠等特点。
White Glue Laminator This machine is designed for leather cover of hardcover book,book cover, wine box,and gift box, etc.The structure is simple and it’s easy and flexible to operate,with stainless steel panel, adjustable speed and glue coating evenly. This machine is single operation with double location, high efficiency, safe and reliable etc.
二、技术参数/Technical Parameters
型 号 Model |
JL-22" |
JL-24" |
最大过胶宽度Effective Width (max) |
710mm |
810mm |
速 度 Speed control |
可调 |
可调 |
电源电压 Power |
AC220V 128W |
AC220V 128W |
机器净重 Net Weight |
45kg |
50kg |
机器尺寸 Dimension |
1030X410X360mm |
1130X410X360mm |
