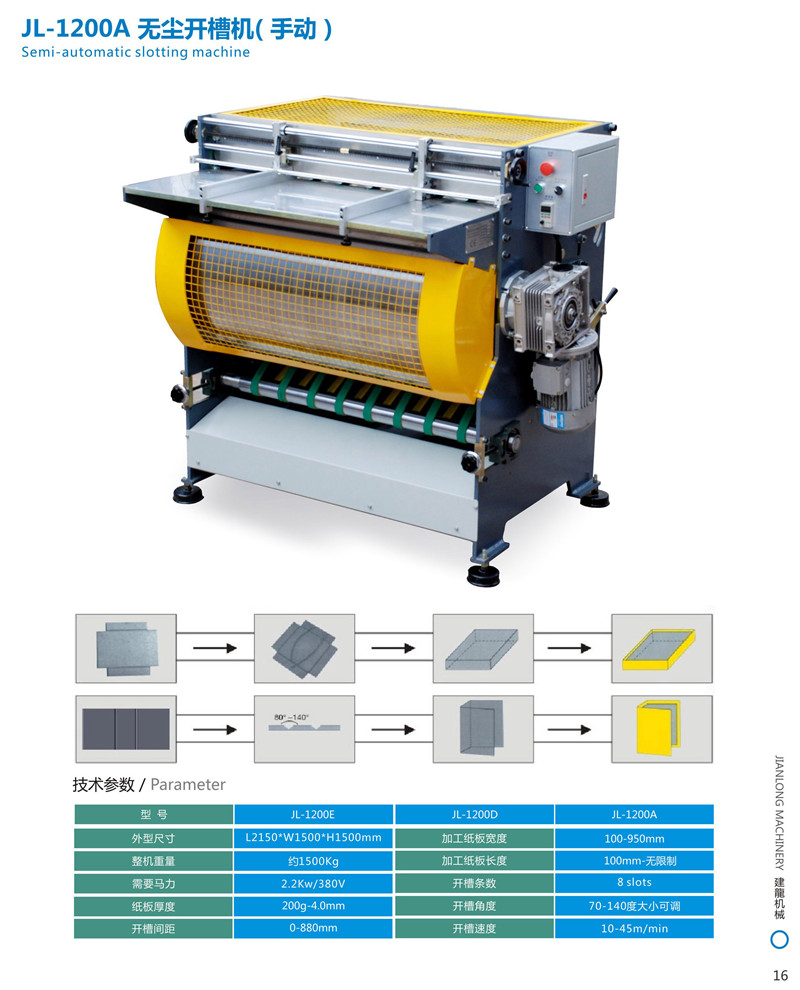

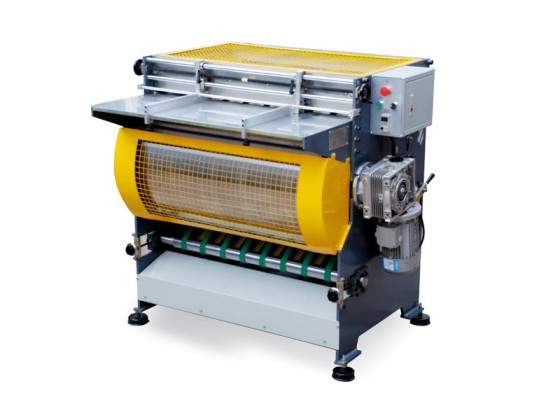

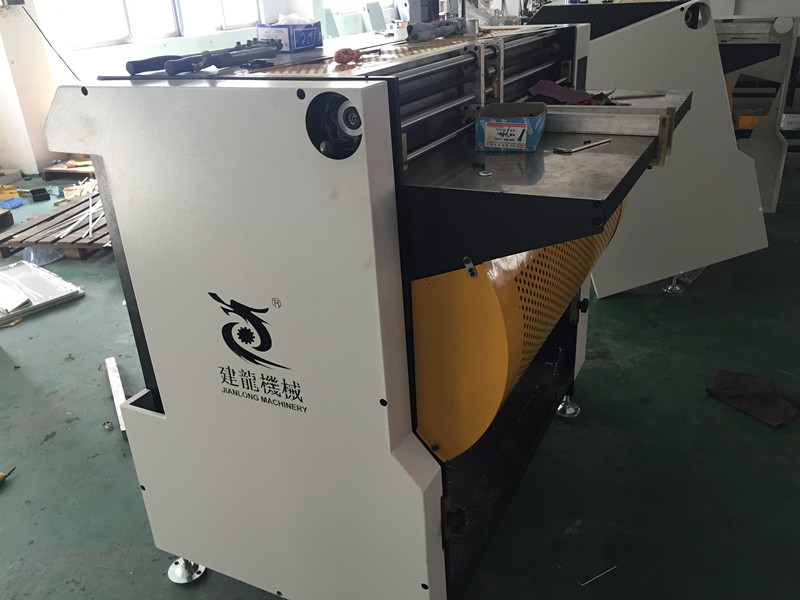

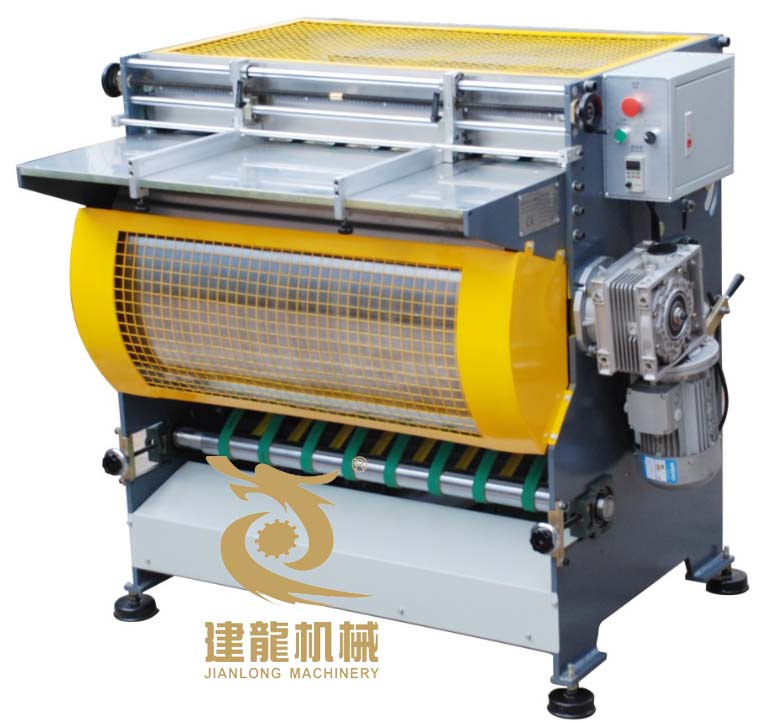

JL-1200A无尘开槽机
JL-1200A无尘开槽机

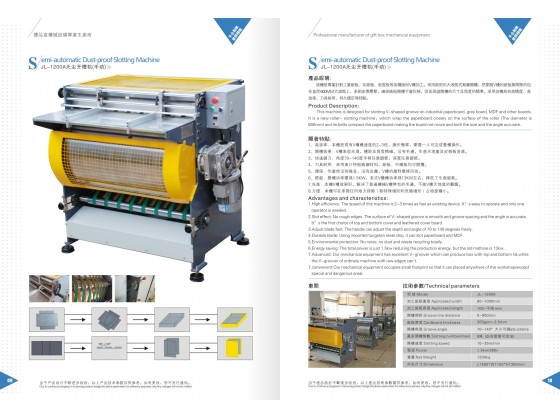

Semi-automatic Dust-proof Slotting Machine
一、产品简介: Product brief introduction
该机是专业针对工业纸板、灰纸板、密度板等各种板材V槽加工。采用新型的大滚筒式无尘开槽,把要开V槽的纸板无间隙的包在直径600MM大滚筒上,多组皮带压紧,确保纸板开槽不会位移,从而保证开槽的尺寸及角度的精准。采用该机具有高精度、高效率、刀具耐用、持久稳定等特点。
This machine is designed for slotting V-shaped groove on industrial paperboard, grey board, MDF and other boards. It is a new roller- slotting machine,which wrap the paperboard closely on the surface of the roller (The diameter is 600mm) and its belts compact the paperboard making the board not move and both the size and the angle accurate.二、显著特点/Advantages and characteristics
1、高效率:本机是现有V槽机速度的2-3倍,操作简单,仅需一人可完成整机操作;

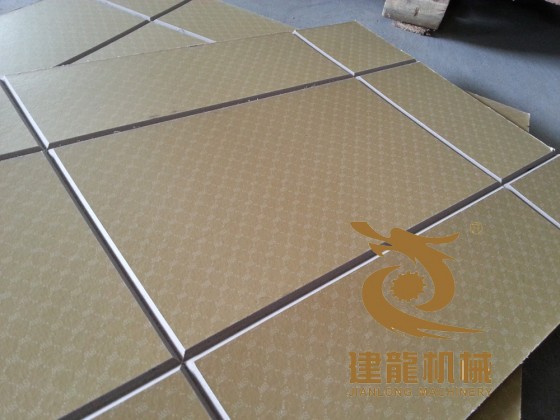

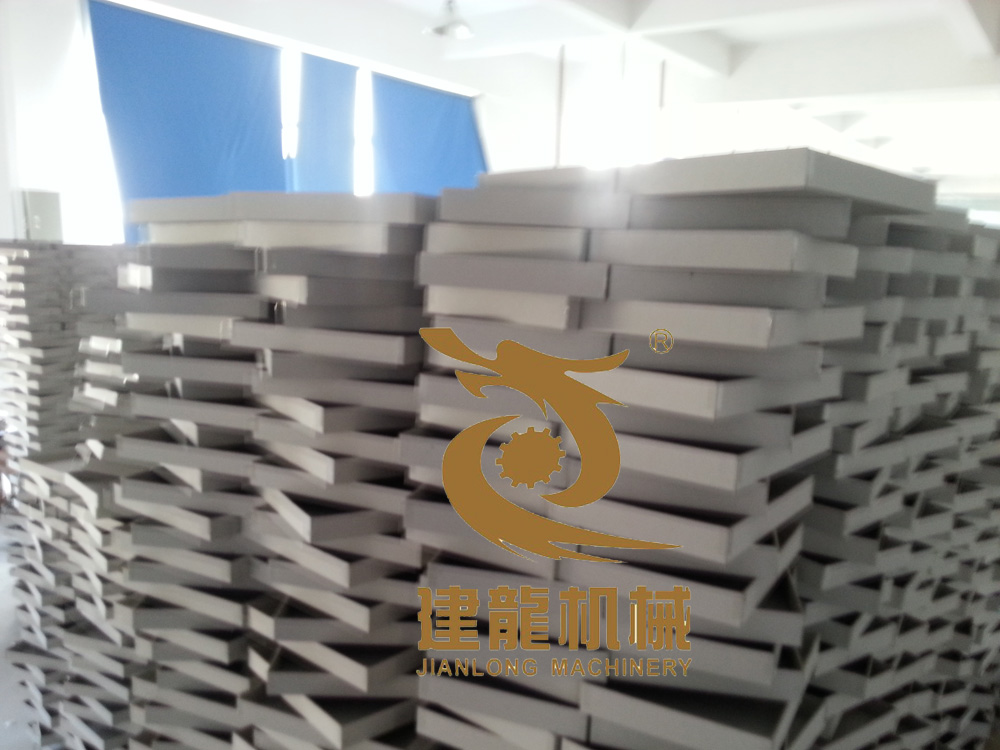

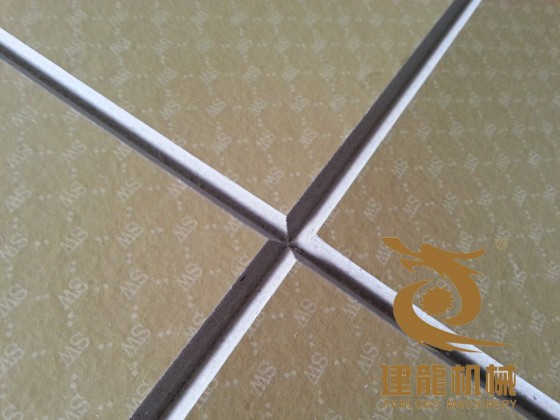

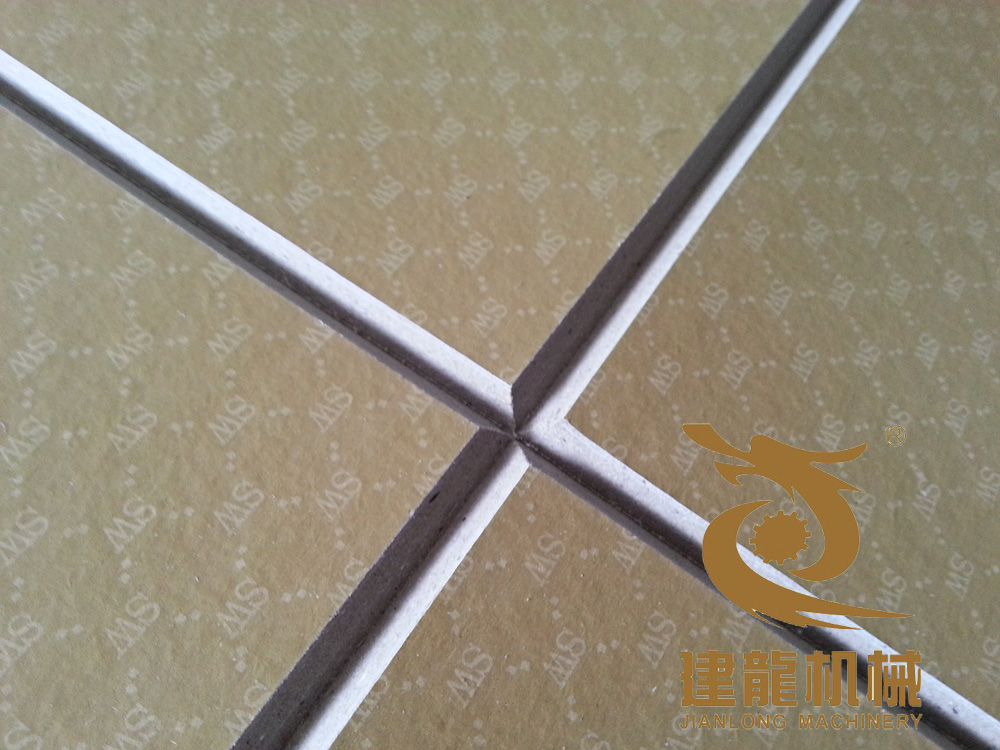

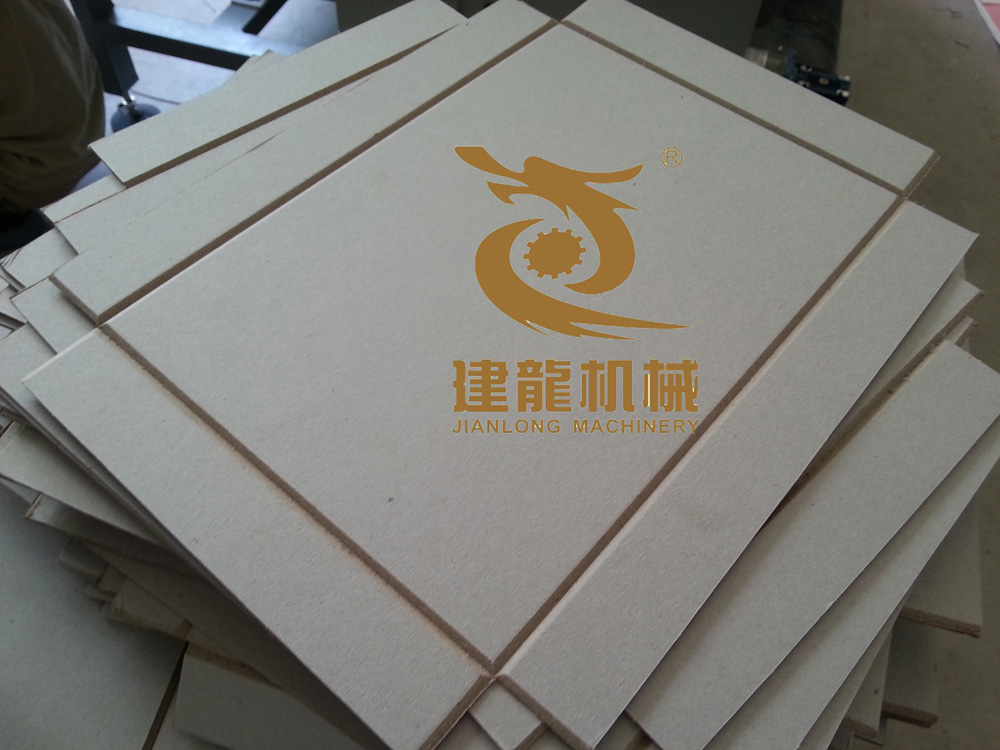

2、开槽效果:V槽表面光滑,槽距及角度精确。没有毛边,生产天地盖及皮壳板首选。
3、快速调刀:角度70-140度手柄任意调节,深度任意调节。
4、刀具耐用:采用进口特级钨钢材料,纸板、中纤板均可开槽。
5、环保:作业时没有噪音,没有灰尘,V槽的废料整条回收。
6、节能:整机功率仅为1.5KW,老式V槽机功率为13KW左右,降低了生产能耗。
1.High efficiency: The speed of this machine is 2-3 times as fast as existing device. It’s easy to operate and only one operator is needed.
2.Slot effect: No rough edges .The surface of V-shaped groove is smooth and groove spacing and the angle is accurate. It’s the first choice of top and bottom cover and leathered cover board.
3.Adjust blade fast: The handle can adjust the depth and angle of 70 to 140 degrees freely.
4.Durable blade: Using imported tungsten steel chip, it can slot paperboard and MDF.
5.Environmental protection: No noise, no dust and waste recycling totally.
6.Energy saving: The total power is just 1.5kw reducing the production energy, but the old mathine is 13kw.
三、技术参数/Technical Parameters
型号 Model
JL-1200A
外型尺寸Dimension
L1500*W1150*H1350mm
整机总量 Weight
约1200Kg
需要马力 Power
1.5Kw/380V
纸板厚度The ckness of cardboard
200g-4.0mm
加工纸板宽度 Max.Processing width
80-1000mm
加工纸板长度 Length of cardboard
100mm-无限制
开槽条数 Slotted number
8 slots
开槽角度 Grooving degree
70-140度大小可调
开槽速度 Producting speed
10-35m/min
开槽间距 Distance of each groove
0-900mm
