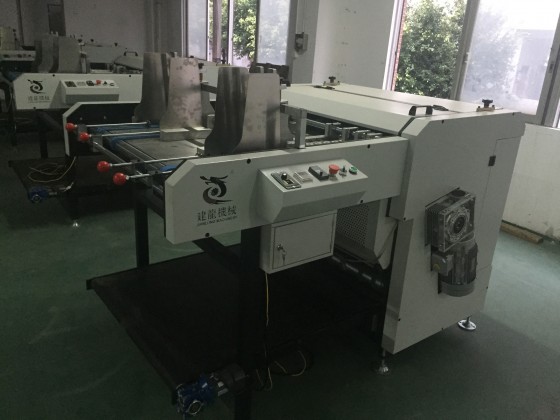

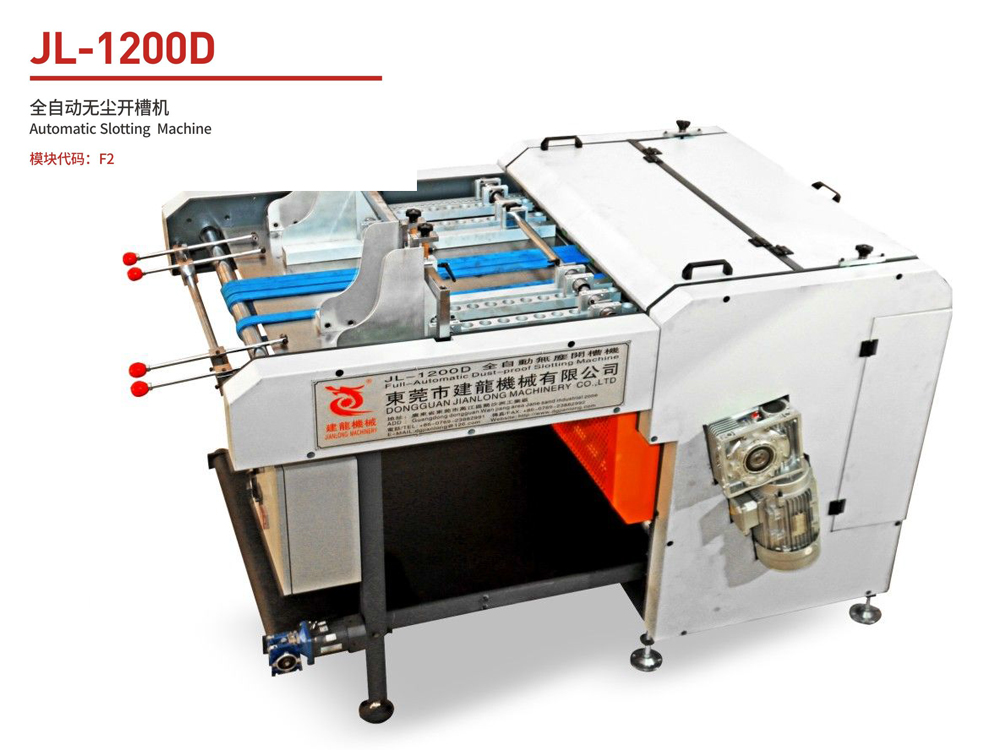

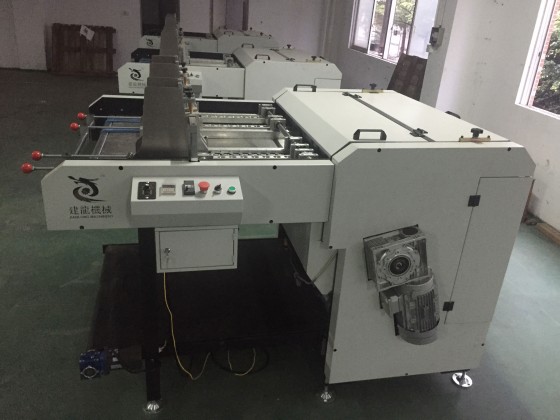

JL-1200D全自动无尘开槽机
JL-1200D全自动无尘开槽机
Automatic Dust-proof Slotting Machine
一、产品简介/Product brief introduction
JL-1200D全自动开槽机,综合了JL-1200半自动无尘开槽机和JL-1200B推机式自动开槽机诸多优点,科学升级,精心改良。通过耐磨皮带的摩擦力以及调节板厚的限位装置达到自动、高效、连续进板;通过两边铝导轨以及可调节弹性滚针轴承装置导向,自动纠偏定位灰板;数条皮带将要开槽的纸板与滚筒无间隙捆绑输送到刀具位置进行开槽,开槽尺寸角度精准。速度是以往人工送板速度的数倍(30-45米/分钟)。
This machine combines the advantages of JL-1200 semi-automatic dust-proof slotting machine and JL-1200B automatic slotting machine, which is improved scientifically and carefully. It can feed the board automatically, efficiently and continuously by the friction of belt and the limiter adjusting thickness of the board. It can adjust and position the grey board by aluminum rail and adjustable elastic needle bearing. The belts send the board to the blade for slotting by bind it to the cylinder and the slotting size and angle is accurate. Its speed is several times faster than before feed board manually(30-45m/min).
二、显著特点/Advantages and characteristics
总结:高效、先进、环保节能,无噪音、无灰尘、无毛边。
1、高效率:自动开槽速度达到30-45m/min,仅需一人操作整机;

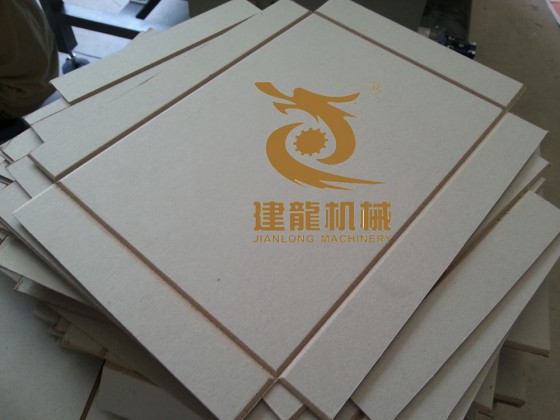

2、开槽效果:V槽面光滑,无灰尘、无噪音;
3、快速调节:开槽角度通过手柄70-140度任意调节!开槽深度任意调节!不用换刀,快捷高效;
4、刀具耐用:进口特级钨钢刀片,纸板及中纤板均可使用,另配送专用磨刀机,同时磨两片刀,磨刀速度更快;
5、节能环保:整机功率为2.2Kw,开槽费料可整条回收;
6、灵活方便:本机占地面积小,移动方便灵活。
Efficient, advanced, environment protection and energy saving, no noise, no dust and no burr.
1. High efficiency: The automatic slotting speed is 30-45m/min. It’s easy to operate and only one operator is needed.
2. Slotting effect: The surface of the v-groove is smooth and no dust, no noise.
3. Quick adjusting: The handle can adjust the depth and angle of 70 to 140 degrees freely. Don’t have to change tool.
4.Durable blade: Using imported tungsten steel chip, it can slot paperboard and MDF. Gift matching dedicated grinder for cutter and sharpen two blades at the same time.
5. Environment protection and energy saving: The total power is just 2.2kw,and the waste is recycled totally.
6. Flexible and convenient: This machine has small occupation area for moving conveniently .
三、技术参数/Technical Parameters
型号 Model |
JL-1200D |
外型尺寸Dimension |
L2150*W1500*H1500mm |
整机总量 Weight |
约1500Kg |
需要马力 Power |
2.2Kw/380V |
纸板厚度The ckness of cardboard |
200g-4.0mm |
加工纸板宽度 Max.Processing width |
100-950mm |
加工纸板长度 Length of cardboard |
100mm-无限制 |
开槽条数 Slotted number |
8 slots |
开槽角度 Grooving degree |
70-140度大小可调 |
开槽速度 Producting speed |
10-45m/min |
开槽间距 Distance of each groove |
0-880mm |
