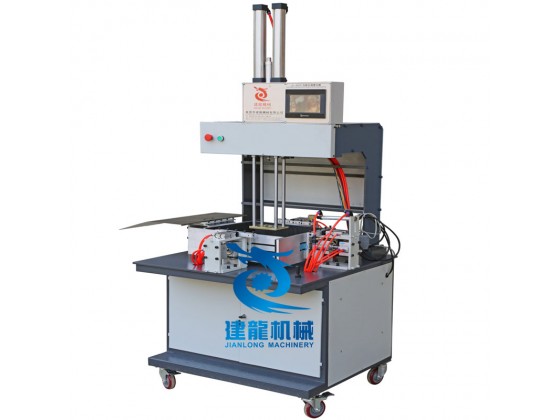

JL-950B 自动折边压泡机(大尺寸二代)
JL-950B型 自动折边压泡机 (大尺寸二代)
Automatic folding and air bubble removing machine
一、产品简介: Product brief introduction
JL-950系列自动折边压泡机是我公司新研发的一款礼盒加工设备,在礼盒压泡机基础上,将折边与压泡完美的合二为一,采用PLC程序控制,触摸屏可视化参数调节,自动定位,折边,压泡,触摸屏界面,调节简单方便,大大提高工作效率,可省3-4人工,带自动计数,拥有急停及启动按键,作业更安全。该机用途广泛,是礼盒印刷包装厂家最佳选择。
This machine is a new developed device of processing gift box, which combines the air bubble removing together with folding on the basis of gift box bubble removing machine. It uses programmable control PLC and visual parameter adjusting touch screen .It can position, fold, and remove bubble automatically and it’s easy to adjust. This machine can improve the work efficiency with auto counting and save 3-4 labor. Start button and scram button make the work safer. The use of the machine is widespread and it’s the best choice for gift box printing and packaging.
二、显著特点/Advantages and c haracteristics
1、拥有双程序:率先采用双程序,拥有折边压泡与单压泡双模式,一键切换,实现礼盒压泡机到自动折边压泡机的切换,省时高效,功能更多,能充分发挥该机性能,更经济实惠。
2、拥有调机模式:可控制单个气缸动作,方便装模,调模。
3、可视化调节:增加触摸屏,调节时间手工输入即可,时间精确到0.1s,增加多组时间段,各时间段均可调节,更方便、更直观、更快捷;
4、五面压盒:五个面全部受压,完美去除气泡,生产的盒子方正美观、立挺饱满,表面无划痕、无气泡、无皱褶;
5、自动计数:让作业产量一目了然;
6、本机配置流水线可大批量作业,节省3-4人工,效率大大提高。
7、该机所有控制配件全采用高端品牌,故障低,性能稳定。
1. Dual procedure: It has dual mode of folding –removing bubble and independent removing bubble, One keyboard toggle. Time saving, efficiency improving, more functions and cheap real benefit make the most advantage of this machine.
2. Adjustable mode: Single cylinder can be controlled. Loading and adjusting mode is convenient.
3. Visual adjusting: Touch screen is used. Settling time can be inputted by hand. The time can accurate to 0.1s.Multigroup period of time can adjust. More convenient, more intuitive and quicker.
4. Pressing five surface: All the five surface is pressed and removing the bubble perfectly. The box produced is square, nice, straight and full. No scratch, no bubble and no folds on the surface.
5. Automatic counting: Production is clear at a glance.
6. Mass production can be achieved with the configured assembly line. It can improve the work efficiency and save 3-4 labor.
7. All the control fitting is from international high-end brands, with low failure rate and high precision.
三、技术参数/Technical Parameters
型号 Model |
950B型 |
适用范围 Scope of application |
天地盖、首饰盒、手机盒、鞋盒等 |
最大制盒尺寸 Effective size(max) |
500*480*120mm(可包到底) |
最小制盒尺寸 Effective size(min) |
80*80*10mm(可包到底) |
生产效率 Work Speed |
15-20pcs/min |
电源 Power |
AC220V/50-60HZ |
使用气压 Using pressure |
0.5-0.8Mpa |
重量 Net Weight |
215kg |
外形尺寸 Dimension |
L900*W850*H1750mm |
